| Lugar de origem | China |
| Marca | Hightop |
| Certificação | CE，EPA，ISO，TUV |
| Número do modelo | HT06 |

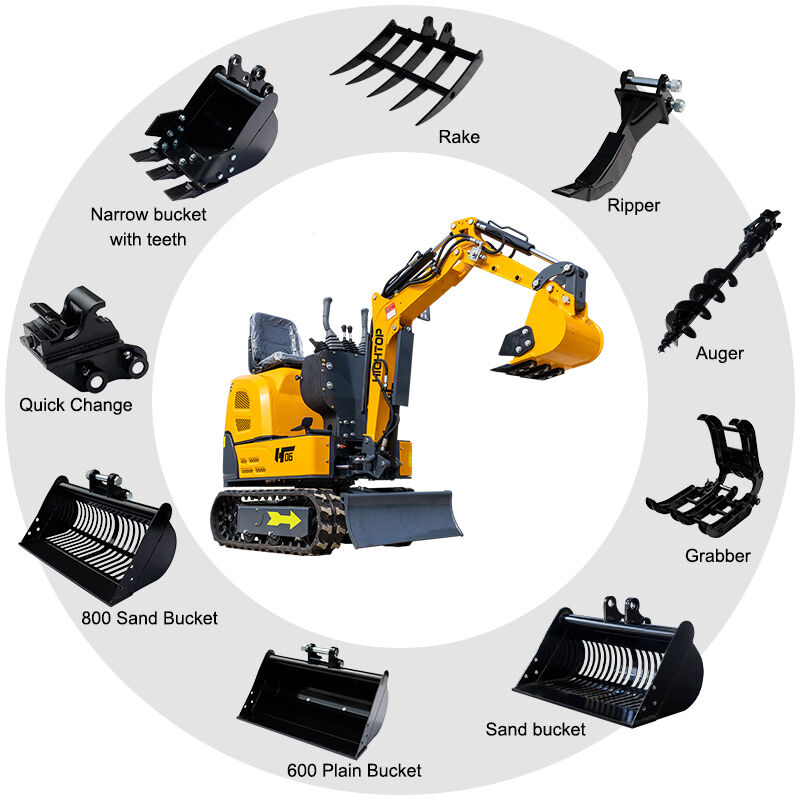

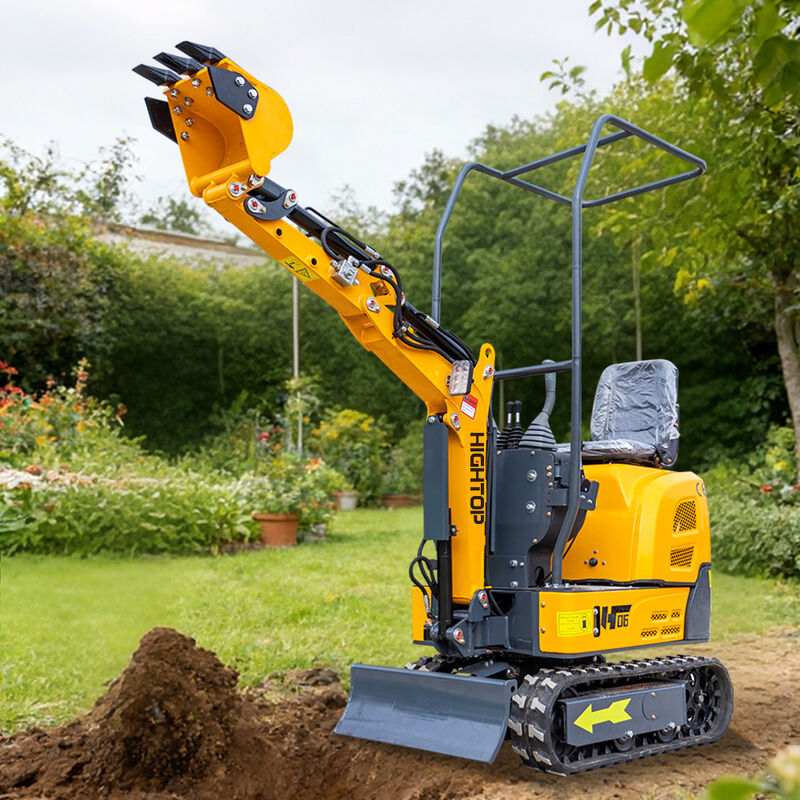

The HT06 Mini Excavator combines ultra-compact design with versatile performance, making it ideal for confined spaces and multiple work scenarios.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Overall length A | 1889 mm | Max digging height a | 2017 mm |
| Overall width B | 700 mm | Max. height at minimum turning radius b | 1589 mm |
| Upper width D | 700 mm | Max. digging depth c | 1118 mm |
| Overall height C | 2086 mm | Max. digging distance d | 2025 mm |
| Standard track shoe width F | 150 mm | Min. turning radius e | 1239 mm |
| Track Gauge E | 550 mm | Max. unloading height f | 1284 mm |
| Shovel height above ground G | 92 mm | Working weight | 600 kg |
| Depth of excavation of bulldozer H | 93 mm | Bucket capacity | 0.01 m³ |
| Tail turning radius I | 650 mm | Working device form | Backhoe |
| Track ground length J | 782 mm | Gradeability | 30° |
| Track length K | 1126 mm | Main valve | Tengfei |
