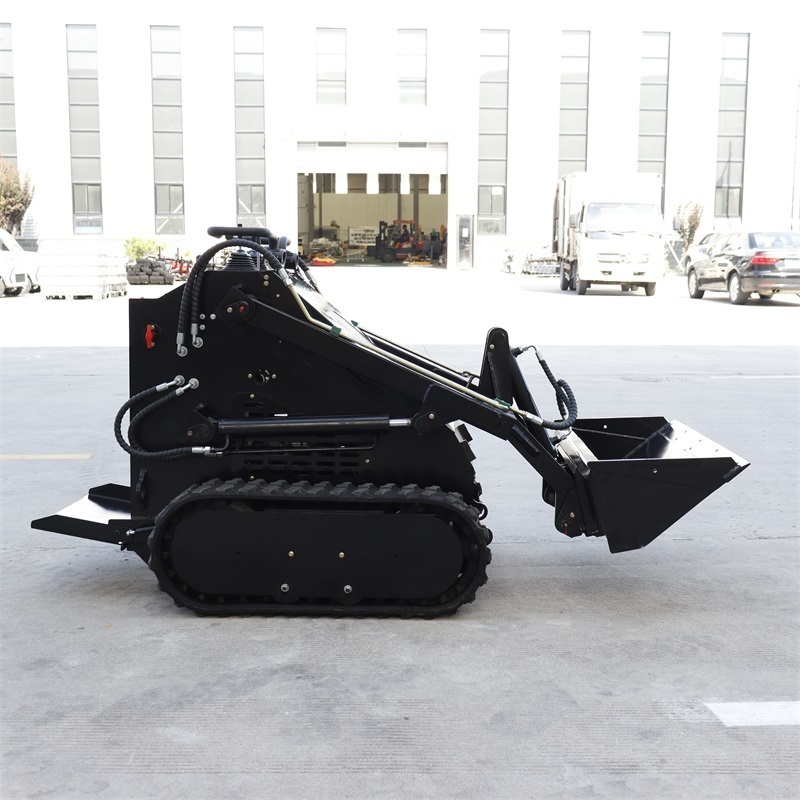

HTS380 Crawler Skid Steer Loader

Name: HTS380 Crawler Skid Steer Loader
Brand: Shandong Hightop Group
SKU: HTS380
Availability: InStock

Lugar de origem	CHINA
Marca	Hightop
Certificação	CE，EPA，ISO，TUV
Número do modelo	HTS380

Detalhes do produto

Nome do produto:

Skid Steer Loader

Altura máxima do pino:

1856mm

Distância entre eixos:

636 milímetros

Sem comprimento do balde:

1752 mm

Largura total:

1033 mm

Destacar:

Max Pin Height 1856mm Skid Steer Loader

Wheelbase 636mm Crawler Skid Steer

No Bucket Length 1752mm Mini Excavator

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Detalhes da embalagem

Estojo de madeira

Tempo de entrega

5-14 dias de trabalho

Termos de pagamento

L/C, D/A, T/T, D/P, Western Union, MoneyGram

Habilidade da fonte

100 set por mês

Descrição do produto

HTS380 Crawler Skid Steer Loader

Key Advantages

The HT380 mini skid steer features a Briggs & Stratton engine for superior load capacity. Its dual joystick control system ensures easy operation, while the multi-purpose design accommodates various attachments including de-icers, snow pushers, sweepers, and hedge trimmers.

Product Features

Premium Engine Options: Available with 23hp Kubota® diesel engine or Briggs & Stratton, RATO, LONCIN gasoline engines for reliable performance
Advanced Hydraulic System: Imported motors deliver optimized hydraulics for the industry's smoothest ride and operator comfort
Multi-Functional Capability: Features Italian FASTER quick coupling system for rapid attachment changes including forklifts, excavators, trenchers, augers, and more
Ergonomic Controls: Dual-level ground drive controls with optional joystick for independent track control in challenging job site conditions

Model: HTS380 Specifications

Specification	Measurement
Max working height	2115 mm
Max pin height	1856 mm
Max dump height	1460 mm
Highest point discharge distance	388 mm
Bucket swing angle	55°
Bucket unloading angle	30°
Opening-closing angle	25°
Angle of departure	8°
Total height	1205 mm
Height from ground	90 mm
Wheelbase	636 mm
No bucket length	1752 mm
Total width	1033 mm
Bucket width	980 mm
Total length (with bucket)	2206 mm
Turning radius	1307 mm
